1. The use of narrow-band infrared light source on the human body without damage, no radiation, no heat, no damage to the eyes; the use of the process without direct contact with patients to eliminate the possibility of cross-infection, with high safety.
2. Real-time, intuitive, open the switch, the instrument aligned with the skin, can be immediately visualized, easy to use.
3. With 3 megapixel zoom lens, can clearly display the enlarged image, provide an accurate basis for puncture.

4. With the upper and lower two light output: the light source using the German original high-power solid-state LED light source, penetrating strong, can clearly show deep vascular images, the light source using multi-point LED light source, no shadow, no reflection of light interference, suitable Observation of superficial blood vessels. Two-way light source can be used in all directions to meet the needs of use.
5 with advanced computer processing system, the installation of the world's leading NIR imaging and image enhancement software, clearly shows the blood vessels.

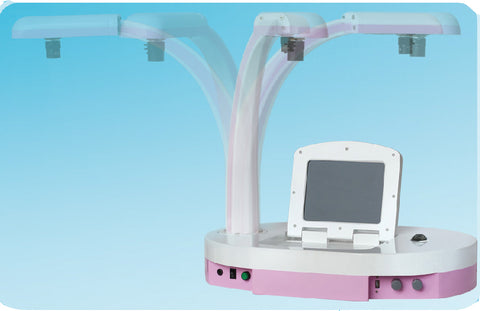

6. Appearance patented design, light source, camera system and display as one can rotate 360, can be used on a variety of venipuncture.

Technical  parameter:

1．light source wavelength range from 750nm to 950nm;

2．light source output intensity can be adjusted;

3．infrared camera special camera resolution, more than 600TVL;

4．camera minimum illumination: 0.01Lux;

5．signal to noise ratio: 50dB;

6．lens: high sense infrared lens, 3000000 pixels, 7-22 variable zoom;

7．display screen: 8.4 "industrial grade LCD screen;

8．display contrast: 700:1

Soft and hardware features:

1．using the narrowband infrared light source without damage to human body, no radiation, no heat, no damage to the eyes;

2．the use of 3000000 pixels variable times the lens, can clearly display the enlarged image, to provide accurate basis for the puncture.

3．with the upper and lower two light source output: the source of the light source with the German original high-power solid-state LED light source, penetrating strong, can clearly display the deep blood vessel image; on the light source using multi point LED light source, no shadow, no reflection light interference, suitable for observation of superficial blood vessel.

4．the upper and lower light source are both strong and weak can be adjusted to meet the needs of the clinical needs of each other;

5．the use of industrial cameras and industrial display can show the best imaging results;

6．the appearance of patent design, beautiful and easy, easy to use.
